5532600-2
Manufacturer:
TE Connectivity
Mfr.Part #:
5532600-2
Datasheet:
Description:

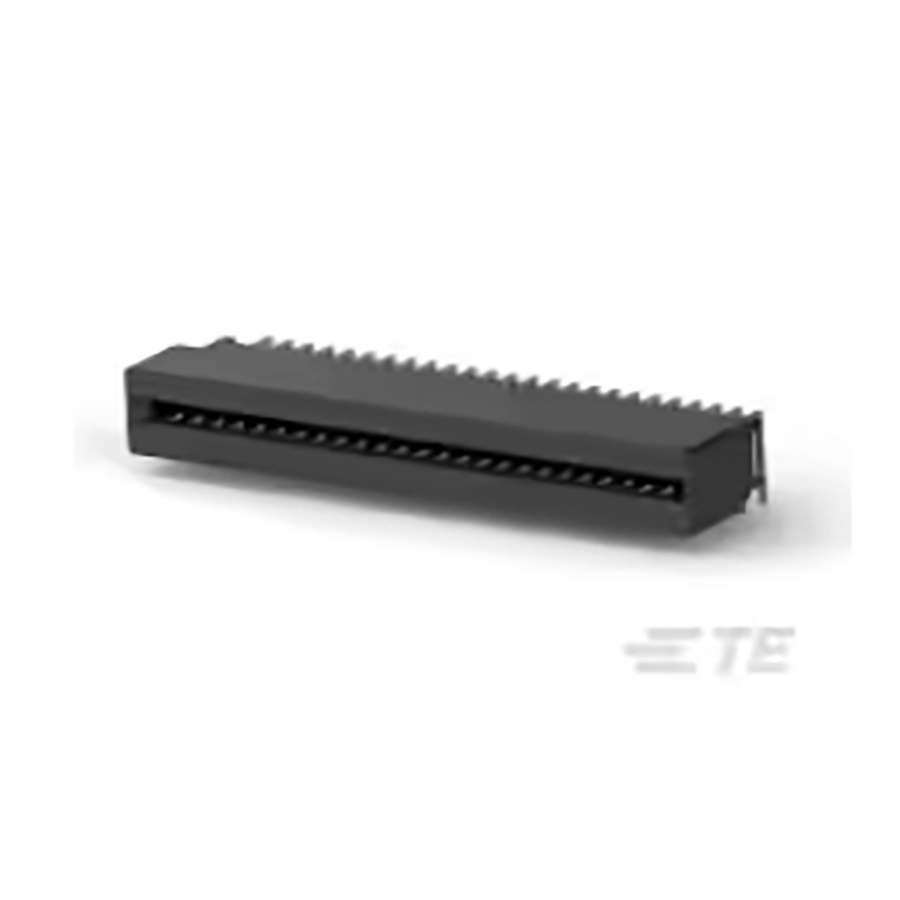

Edgeboard Connectors Through Hole Female Right Angle Number of Positions:50
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 15.494 mm |
| Packaging | Tray |
| Voltage Rating | 400 V |
| RoHS | Compliant |
| Contact Plating | Gold over Nickel |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 400 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 50 |
| ELV | Compliant |
| Connector Type | Socket |
| Contact Type | |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Insulation Material | Glass |
| Card Thickness | 1.57 mm |
| Housing Material | Polyester |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Plating | Gold |
| PCB Mounting Orientation | Right Angle |
| Plating Thickness | 380 nm |
| Number of Power Positions | 50 |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Mounting Angle | Right Angle |
| Card Type | Dual Edge |
Stock: 263
Distributors
pcbx
pcbxUnit Price$6.42559
Ext.Price$6.42559
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.42559 | $6.42559 |
| 10 | $5.46232 | $54.62320 |
| 25 | $5.11992 | $127.99800 |
| 50 | $4.87541 | $243.77050 |
| 100 | $4.63923 | $463.92300 |
| 300 | $4.41449 | $1324.34700 |
| 500 | $4.20064 | $2100.32000 |
| 1000 | $3.99711 | $3997.11000 |
